A tear down photo album of Polycom SoundStation 2, covering the overall product design and electronics layout. A number of shots focusing LCD display, keypad and 2.5mm connector (Application port).
Total 36 photo(s) in this album. [Enter]

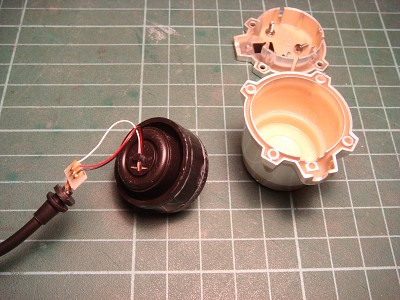

This photo journal shows a tear down of Nortel NTMN72AA-70 Full Duplex Hands free accessory. This interface is to slot into a Nortel Meridian M3904 phone''s Accessory Connection Module (ACM) to provide full duplex speaker phone communication. Tear down showcases housing design, PCB fitting and alignment.
Total 16 photo(s) in this album. [Enter]

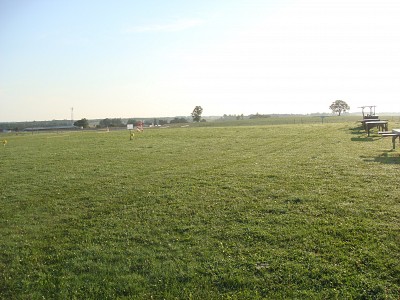

FAI Aeromodelling, Volume F3. Radio Control Model Helicopters - F3C contest area layout
Blog: FAI Aeromodelling F3C Layout How to
Total 7 photo(s) in this album. [Enter]

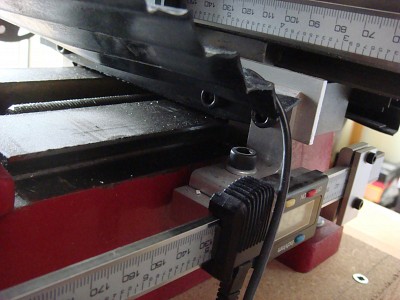

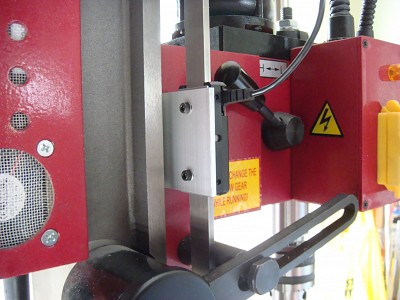

This set shows a clean, mod and drill-free way to mount digital scales (X,Y,Z axis) onto mini desktop milling machine.
Blog: Minimill DRO installation
Total 12 photo(s) in this album. [Enter]
JR G5000T Extreme Tail Lock Gyro Tear Down

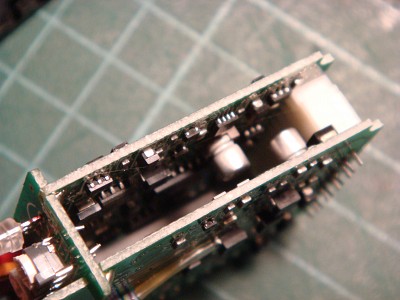

During spring cleaning last year, we found the JR G5000T Extreme Tail Lock Gyro from one of our helicopters quitted working.
Time for a tear down!
Blog: JR G5000T tear down
Total 18 photo(s) in this album. [Enter]
Teardown photos of Microsoft Basic Optical Mouse v2.0

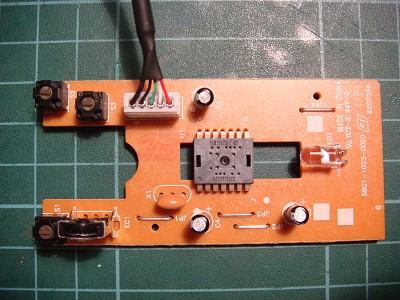

A total of 13 photos showed unique PCB design, various push buttons (aka Mouse buttons) and encoder for vertical scroll wheel.
The main IC is the optical LED sensor with built-in USB interface for tracking mouse movement.
Total 13 photo(s) in this album. [Enter]
